Single Lid Case Size Chart

pelican single lid case dimensionses cases

Peli Custom Case Solutions will create a custom size case to perfectly fit your needs.
Get Quote

Light Lift case option available

Peli Custom Case Solutions will create a custom size case to perfectly fit your needs.
Get Quote

Light Lift case option available -

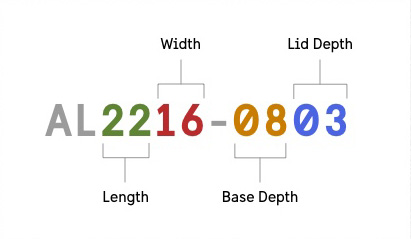

Catalogue

Length

Width

Depth

Base / Lid

Weight

AL1010-0905

25.2 cm

25.4 cm

35.4 cm

22.1 cm / 13.3 cm

4.5 kg

AL1010-0904

25.2 cm

25.4 cm

32.3 cm

22.1 cm / 10.2 cm

4.4 kg

AL1010-1404

25.2 cm

25.4 cm

45.1 cm

34.9 cm / 10.2 cm

5.2 kg

AL1010-1405

25.2 cm

25.4 cm

48.3 cm

34.9 cm / 13.3 cm

5.6 kg

CL1109-0303HL

27.9 cm

22.5 cm

15.2 cm

7.6 cm / 7.6 cm

2.4 kg

AL1212-1904

30.5 cm

57.7 cm

47.5 cm / 10.2 cm

7.6 kg

AL1212-1205FM

30.5 cm

41.6 cm

28.6 cm / 13 cm

5.9 kg

AL1212-0604FM

30.5 cm

26.2 cm

16 cm / 10.2 cm

5 kg

AL1212-0404FM

30.5 cm

20.9 cm

10.7 cm / 10.2 cm

4.3 kg

AL1212-1505FM

30.5 cm

51.6 cm

38.6 cm / 13 cm

6.8 kg

AL1212-1204FM

30.5 cm

38.8 cm

28.6 cm / 10.2 cm

5.8 kg

AL1212-1504FM

30.5 cm

48.7 cm

38.6 cm / 10.2 cm

6.7 kg

AL1212-0605FM

30.5 cm

28.7 cm

16 cm / 13 cm

5.1 kg

AL1212-0405FM

30.5 cm

23.7 cm

10.7 cm / 13 cm

4.4 kg

AL1212-1905

30.5 cm

60.5 cm

47.5 cm / 13 cm

7.7 kg

AL1414-0705

35.6 cm

35.9 cm

30.3 cm

17.1 cm / 13.2 cm

6.6 kg

AL1413-1005

36.8 cm

33.3 cm

39.2 cm

25.9 cm / 13.3 cm

7.5 kg

AL1413-2105

36.8 cm

33.3 cm

66 cm

52.7 cm / 13.3 cm

8.9 kg

AL1413-0505

36.8 cm

33.3 cm

26.2 cm

12.9 cm / 13.3 cm

6.1 kg

CL1412-0502

37.5 cm

30.1 cm

18.9 cm

12.5 cm / 6.4 cm

4.3 kg

AL1616-0505

40 cm

40.3 cm

26.8 cm

13.8 cm / 13 cm

6.6 kg

AL1616-0412AC/HL

40 cm

40.3 cm

40.8 cm

9.8 cm / 30.9 cm

8.1 kg

AL1616-1005

40 cm

40.3 cm

38.1 cm

25.1 cm / 13 cm

8 kg

AL1616-1204

40 cm

40.3 cm

38.6 cm

28.8 cm / 9.8 cm

8.1 kg

AL1616-1212AC/HL

40 cm

40.3 cm

59.7 cm

28.8 cm / 30.9 cm

10.5 kg

AL1616-1205

40 cm

40.3 cm

41.8 cm

28.8 cm / 13 cm

8.4 kg

AL1616-0512AC/HL

40 cm

40.3 cm

44.7 cm

13.8 cm / 30.9 cm

8.4 kg

AL1616-1804

40 cm

40.3 cm

56.2 cm

46.4 cm / 9.8 cm

9.8 kg

AL1616-0404

40 cm

40.3 cm

19.7 cm

9.8 cm / 9.8 cm

5.7 kg

AL1616-1812AC/HL

40 cm

40.3 cm

77.3 cm

46.4 cm / 30.9 cm

12.2 kg

AL1616-1805

40 cm

40.3 cm

59.4 cm

46.4 cm / 13 cm

10 kg

AL1616-0504

40 cm

40.3 cm

23.6 cm

13.8 cm / 9.8 cm

6.3 kg

AL1616-1012AC/HL

40 cm

40.3 cm

56 cm

25.1 cm / 30.9 cm

10.2 kg

AL1616-1004

40 cm

40.3 cm

34.9 cm

25.1 cm / 9.8 cm

7.8 kg

AL1616-0405

40 cm

40.3 cm

22.8 cm

9.8 cm / 13 cm

6.2 kg

CL1713-0408AC/HL

42.9 cm

32.7 cm

30.5 cm

11.1 cm / 19.4 cm

5 kg

CL1713-0403

42.9 cm

32.7 cm

18.7 cm

11.1 cm / 7.6 cm

3.1 kg

AL1717-0909AC/HL

43.2 cm

45.4 cm

22.5 cm / 22.9 cm

8.5 kg

CL1715-0904

43.5 cm

37.8 cm

35.6 cm

25.1 cm / 10.5 cm

5.7 kg

GR1815-0603

45.5 cm

36.3 cm

28.2 cm

21.3 cm / 7.9 cm

8.6 kg

AL1818-0603HL

45.5 cm

24.3 cm

16.2 cm / 8.1 cm

7.5 kg

AL1814-0505

45.7 cm

37.1 cm

26.4 cm

13.2 cm / 13.2 cm

7.1 kg

AL1814-1505

45.7 cm

37.1 cm

51.1 cm

37.9 cm / 13.2 cm

9.3 kg

AL1814-2204

45.7 cm

37.1 cm

66.3 cm

56.3 cm / 10 cm

10.6 kg

AL1814-2205

45.7 cm

37.1 cm

69.5 cm

56.3 cm / 13.2 cm

11.2 kg

AL1814-1504

45.7 cm

37.1 cm

47.9 cm

37.9 cm / 10 cm

8.8 kg

AL1814-0504

45.7 cm

37.1 cm

23.1 cm

13.2 cm / 10 cm

6.5 kg

AL1812-0602

46 cm

31.1 cm

21.6 cm

15.1 cm / 6.5 cm

5.6 kg

AL2015-1503HL

50.2 cm

39.7 cm

45.6 cm

38.6 cm / 7 cm

10.9 kg

AL2015-0503HL

50.2 cm

39.7 cm

19.8 cm

12.9 cm / 7 cm

7.5 kg

AL2013-0403

50.5 cm

33 cm

17.8 cm

10.2 cm / 7.6 cm

6.1 kg

AL2020-1305

50.5 cm

46 cm

32.8 cm / 13.2 cm

11.7 kg

CL2012-0902

51.3 cm

29.8 cm

29.6 cm

23.3 cm / 6.4 cm

5.5 kg

AL2017-0706

51.4 cm

43.6 cm

33 cm

17.8 cm / 15.2 cm

8.7 kg

GR2221-0405

55.4 cm

52.8 cm

27.2 cm

15.5 cm / 12.4 cm

11.3 kg

GR2216-0305

55.4 cm

40.6 cm

25.1 cm

7.6 cm / 13.5 cm

10.4 kg

AL2216-0505

55.9 cm

40.6 cm

26.7 cm

13.3 cm / 13.3 cm

8.4 kg

AL2216-0805

55.9 cm

40.6 cm

34.7 cm

21.4 cm / 13.3 cm

9.1 kg

AL2216-0503

55.9 cm

40.6 cm

21 cm

13.3 cm / 7.6 cm

7.9 kg

AL2216-1205

55.9 cm

40.6 cm

44.5 cm

31.1 cm / 13.3 cm

10 kg

AL2216-0803

55.9 cm

40.6 cm

29 cm

21.4 cm / 7.6 cm

8.6 kg

AL2216-1203

55.9 cm

40.6 cm

38.7 cm

31.1 cm / 7.6 cm

9.6 kg

AL2221-0404

57.2 cm

53.5 cm

19.4 cm

9.9 cm / 9.5 cm

10.2 kg

AL2221-1202

57.2 cm

53.5 cm

36.3 cm

30.6 cm / 5.7 cm

11.3 kg

AL2221-1804

57.2 cm

53.5 cm

56.8 cm

47.3 cm / 9.5 cm

15.1 kg

AL2221-0602

57.2 cm

53.5 cm

22.2 cm

16.5 cm / 5.7 cm

10.3 kg

AL2221-2805

57.2 cm

53.5 cm

84.1 cm

71.4 cm / 12.7 cm

18.4 kg

AL2221-1214AC

57.2 cm

53.5 cm

66.8 cm

30.6 cm / 36.2 cm

14.4 kg

AL2221-0604

57.2 cm

53.5 cm

26 cm

16.5 cm / 9.5 cm

10.9 kg

AL2221-0402

57.2 cm

53.5 cm

15.6 cm

9.9 cm / 5.7 cm

9.6 kg

AL2221-1814AC

57.2 cm

53.5 cm

83.5 cm

47.3 cm / 36.2 cm

17.5 kg

AL2221-1802

57.2 cm

53.5 cm

53 cm

47.3 cm / 5.7 cm

14.5 kg

AL2221-0414AC/HL

57.2 cm

53.5 cm

46.1 cm

9.9 cm / 36.2 cm

13.7 kg

AL2221-2802

57.2 cm

53.5 cm

78.1 cm

72.4 cm / 5.7 cm

17.5 kg

AL2221-1204

57.2 cm

53.5 cm

40.2 cm

30.6 cm / 9.5 cm

11.9 kg

AL2221-1805

57.2 cm

53.5 cm

60 cm

47.3 cm / 12.7 cm

15.5 kg

AL2221-0419DE

57.2 cm

53.5 cm

60 cm

10.2 cm / 49.8 cm

14.5 kg

AL2221-0614AC/HL

57.2 cm

53.5 cm

52.7 cm

16.5 cm / 36.2 cm

13.3 kg

AL2221-1205

57.2 cm

53.5 cm

43.3 cm

30.6 cm / 12.7 cm

12.4 kg

AL2221-0405

57.2 cm

53.5 cm

22.6 cm

9.9 cm / 12.7 cm

10.6 kg

AL2221-2814AC

57.2 cm

53.5 cm

107.6 cm

71.4 cm / 36.2 cm

17.7 kg

AL2221-2804

57.2 cm

53.5 cm

80.9 cm

71.4 cm / 9.5 cm

18.1 kg

AL2221-0605

57.2 cm

53.5 cm

29.2 cm

16.5 cm / 12.7 cm

11.2 kg

AL2318-1705

58.1 cm

45.5 cm

56.6 cm

43.6 cm / 13 cm

13.2 kg

AL2318-1205

58.1 cm

45.5 cm

44.3 cm

31.1 cm / 13.2 cm

11.6 kg

AL2313-1004

58.4 cm

33 cm

39.3 cm

27.6 cm / 11.8 cm

9.2 kg

AL2315-2507

59.1 cm

38.7 cm

82.5 cm

64.4 cm / 18.1 cm

14.6 kg

AL2221-2304

59.2 cm

54.4 cm

69.6 cm

59.2 cm / 10.4 cm

13.6 kg

AL2221-2314

59.2 cm

54.4 cm

96.8 cm

59.2 cm / 37.6 cm

16.7 kg

AL2221-2302

59.2 cm

54.4 cm

64.5 cm

59.2 cm / 5.3 cm

12.9 kg

AL2221-2305

59.2 cm

54.4 cm

72.9 cm

59.2 cm / 13.7 cm

14 kg

AL2316-0604

59.7 cm

40.3 cm

28.5 cm

16.2 cm / 12.4 cm

9 kg

AL2417-1505

61 cm

43.2 cm

50.9 cm

37.7 cm / 13.2 cm

12.4 kg

AL2412-1505

61.4 cm

30.5 cm

51 cm

37.8 cm / 13.2 cm

10 kg

AL2414-1604

61.6 cm

36.2 cm

51.1 cm

40.8 cm / 10.3 cm

10.4 kg

AL2415-0215AC/HL

61.6 cm

38.7 cm

42.6 cm

4.9 cm / 37.7 cm

11.7 kg

AL2414-0509AC/HL

62.5 cm

37 cm

36.9 cm

13.2 cm / 23.7 cm

10.7 kg

AL2423-0911AC/HL

62.9 cm

59.1 cm

50.8 cm

22.2 cm / 28.6 cm

14.4 kg

AL2423-0503

62.9 cm

59.1 cm

20.3 cm

11.9 cm / 8.4 cm

10.6 kg

AL2423-0506

62.9 cm

59.1 cm

27.8 cm

11.9 cm / 15.9 cm

11.3 kg

AL2423-1104

62.9 cm

59.1 cm

37.2 cm

27.3 cm / 9.9 cm

12.7 kg

AL2423-0904

62.9 cm

59.1 cm

32.1 cm

22.2 cm / 9.9 cm

11.6 kg

AL2423-0903

62.9 cm

59.1 cm

30.6 cm

22.2 cm / 8.4 cm

11.3 kg

AL2423-1103

62.9 cm

59.1 cm

35.7 cm

27.3 cm / 8.4 cm

12.4 kg

CL2407-0404

62.9 cm

19.1 cm

17.4 cm

8.9 cm / 8.5 cm

4 kg

AL2423-0906

62.9 cm

59.1 cm

38.1 cm

22.2 cm / 15.9 cm

12.7 kg

AL2423-0511AC/HL

62.9 cm

59.1 cm

40.5 cm

11.9 cm / 28.6 cm

13.7 kg

AL2423-1106

62.9 cm

59.1 cm

43.2 cm

27.3 cm / 15.9 cm

13.4 kg

AL2423-1111AC/HL

62.9 cm

59.1 cm

55.9 cm

27.3 cm / 28.6 cm

14.7 kg

AL2423-0504

62.9 cm

59.1 cm

21.8 cm

11.9 cm / 9.9 cm

10.9 kg

CL2406-0303

62.9 cm

16.8 cm

15.5 cm

7.8 cm / 7.8 cm

3 kg

AL2624-1203

AL2624-1203LW

66 cm

61.3 cm

38.7 cm

30.1 cm / 8.6 cm

14.1 kg

6.4 kg

AL2624-0524AC

66 cm

61.3 cm

74.7 cm

13.6 cm / 61 cm

19.1 kg

AL2624-0503

AL2624-0503LW

66 cm

61.3 cm

22.2 cm

13.6 cm / 8.6 cm

10.9 kg

4.9 kg

AL2624-2703

66 cm

61.3 cm

76.3 cm

67.7 cm / 8.6 cm

18.6 kg

AL2624-0513AC

AL2624-0513ACLW

66 cm

61.3 cm

47 cm

13.6 cm / 33.3 cm

14.5 kg

10.2 kg

AL2617-0604

66 cm

43.8 cm

25.1 cm

15.6 cm / 9.5 cm

10.2 kg

AL2624-1803

AL2624-1803LW

66 cm

61.3 cm

53.8 cm

45.2 cm / 8.6 cm

15.9 kg

7.2 kg

AL2624-0803

AL2624-0803LW

66 cm

61.3 cm

29 cm

20.5 cm / 8.6 cm

12.7 kg

5.8 kg

AL2624-0505

AL2624-0505LW

66 cm

61.3 cm

26.5 cm

13.6 cm / 12.9 cm

12.7 kg

5.8 kg

AL2617-1104

66 cm

43.8 cm

37.5 cm

27.9 cm / 9.5 cm

11.9 kg

AL2624-0805

AL2624-0805LW

66.2 cm

61 cm

33.3 cm

20.5 cm / 12.9 cm

14.2 kg

6.4 kg

AL2624-2705

66.2 cm

61 cm

80.6 cm

67.7 cm / 12.9 cm

20.2 kg

AL2624-1205

AL2624-1205LW

66.2 cm

61 cm

43 cm

30.1 cm / 12.9 cm

15.5 kg

7 kg

AL2624-1813AC/HL

66.2 cm

61 cm

78.6 cm

45.2 cm / 33.3 cm

19.7 kg

AL2624-2713AC

66.2 cm

61 cm

101.1 cm

67.7 cm / 33.3 cm

22.4 kg

AL2624-1805

66.2 cm

61 cm

58.1 cm

45.2 cm / 12.9 cm

17.5 kg

AL2624-1213AC/HL

66.2 cm

61 cm

63.5 cm

30.1 cm / 33.3 cm

17.3 kg

AL2624-2724AC

66.2 cm

61 cm

128.7 cm

67.7 cm / 61 cm

26.4 kg

AL2624-0824AC/HL

66.2 cm

61 cm

81.4 cm

20.5 cm / 61 cm

20.6 kg

AL2624-1224AC/HL

66.2 cm

61 cm

91.1 cm

30.1 cm / 61 cm

21.9 kg

AL2624-0813AC/HL

AL2624-0813AC/HLLW

66.2 cm

61 cm

53.8 cm

20.5 cm / 33.3 cm

16.4 kg

11.5 kg

AL2624-1824AC

66.2 cm

61 cm

106.2 cm

45.2 cm / 61 cm

23.8 kg

AL2727-0409AC/HL

AL2727-0409AC/HLLW

68.6 cm

32.7 cm

9.2 cm / 23.5 cm

15.6 kg

11 kg

AL2727-2305

68.6 cm

70.5 cm

57.8 cm / 12.7 cm

19.6 kg

AL2727-0914AC/HL

68.6 cm

58.5 cm

22.4 cm / 36.2 cm

18.6 kg

AL2727-2705

68.6 cm

81.2 cm

68.5 cm / 12.7 cm

22.2 kg

AL2727-0505

AL2727-0505LW

68.6 cm

25.4 cm

12.7 cm / 12.7 cm

14.5 kg

6.6 kg

AL2727-0509AC/HL

AL2727-0509AC/HLLW

68.6 cm

36.2 cm

12.7 cm / 23.5 cm

15.7 kg

11 kg

AL2727-2714AC

68.6 cm

104.7 cm

68.5 cm / 36.2 cm

25.2 kg

AL2727-2314AC

68.6 cm

94 cm

57.8 cm / 36.2 cm

24 kg

AL2727-0904

AL2727-0904LW

68.6 cm

32.2 cm

22.4 cm / 9.8 cm

15 kg

6.8 kg

AL2727-1405

AL2727-1405LW

68.6 cm

48.6 cm

35.9 cm / 12.7 cm

17.5 kg

7.9 kg

AL2727-0905

AL2727-0905LW

68.6 cm

35.1 cm

22.4 cm / 12.7 cm

15.6 kg

7.1 kg

AL2727-2304

68.6 cm

67.6 cm

57.8 cm / 9.8 cm

19.6 kg

AL2727-0405

AL2727-0405LW

68.6 cm

21.9 cm

9.2 cm / 12.7 cm

14.5 kg

6.6 kg

AL2727-1404

AL2727-1404LW

68.6 cm

45.7 cm

35.9 cm / 9.8 cm

16.8 kg

11.8 kg

AL2727-2704

68.6 cm

78.3 cm

68.5 cm / 9.8 cm

21.6 kg

AL2727-2309AC

68.6 cm

81.3 cm

57.8 cm / 23.5 cm

22.2 kg

AL2727-0404

AL2727-0404LW

68.6 cm

19 cm

9.2 cm / 9.8 cm

13.8 kg

6.3 kg

AL2727-2709AC

68.6 cm

92 cm

68.5 cm / 23.5 cm

23.4 kg

AL2727-1409AC

68.6 cm

59.4 cm

35.9 cm / 23.5 cm

18.6 kg

AL2727-0514AC/HL

AL2727-0514AC/HLLW

68.6 cm

48.9 cm

12.7 cm / 36.2 cm

17.6 kg

12.3 kg

AL2727-0414AC/HL

AL2727-0414AC/HLLW

68.6 cm

45.4 cm

9.2 cm / 36.2 cm

17.5 kg

12.2 kg

AL2727-1414AC/HL

68.6 cm

72.1 cm

35.9 cm / 36.2 cm

20.5 kg

AL2727-0909AC/HL

AL2727-0909AC/HLLW

68.6 cm

45.8 cm

22.4 cm / 23.5 cm

16.8 kg

11.7 kg

AL2727-0504

AL2727-0504LW

68.6 cm

22.5 cm

12.7 cm / 9.8 cm

13.9 kg

6.3 kg

AL2818-0805

AL2818-0805LW

71.4 cm

46 cm

33.6 cm

20.6 cm / 13 cm

12 kg

5.5 kg

AL2822-1212AC

71.5 cm

63.5 cm

63.3 cm

32.1 cm / 31.2 cm

17.5 kg

AL2825-1212

71.5 cm

63.5 cm

63.3 cm

32.1 cm / 31.2 cm

20 kg

AL2825-1605

72.4 cm

63.5 cm

54.9 cm

41.9 cm / 13 cm

17.7 kg

AL2825-1612AC/HL

72.4 cm

63.5 cm

73.2 cm

41.9 cm / 31.2 cm

20.7 kg

AL2909-0605

AL2909-0605LW

72.4 cm

21.6 cm

28.6 cm

15.2 cm / 13.3 cm

7.2 kg

3.3 kg

AL2825-1205

72.4 cm

63.5 cm

45.1 cm

32.1 cm / 13 cm

17 kg

AL2914-0906

AL2914-0906LW

73.3 cm

36.8 cm

38.2 cm

22.5 cm / 15.7 cm

11.1 kg

5 kg

AL2914-0905

AL2914-0905LW

73.3 cm

36.8 cm

35.7 cm

22.5 cm / 13.2 cm

10.5 kg

4.8 kg

AL2924-0904

74.3 cm

60.6 cm

33.8 cm

23.7 cm / 10.1 cm

13.7 kg

AL2914-0605

AL2914-0605LW

75.2 cm

37.6 cm

26.2 cm

15 cm / 13.7 cm

9.3 kg

4.2 kg

AL2914-0618

75.2 cm

37.6 cm

65.3 cm

15 cm / 50.3 cm

13.4 kg

AL2914-0606

AL2914-0606LW

75.2 cm

37.6 cm

29.5 cm

15 cm / 17 cm

9.8 kg

4.4 kg

AL2914-0918

75.2 cm

37.6 cm

73.7 cm

23.4 cm / 50.3 cm

19.3 kg

AL3018-2302

75.6 cm

45.4 cm

67 cm

60.3 cm / 6.7 cm

17.2 kg

AL3018-0902

AL3018-0902LW

75.6 cm

45.4 cm

30.5 cm

23.8 cm / 6.7 cm

12.2 kg

5.5 kg

AL3018-1509AC

75.6 cm

45.4 cm

61.3 cm

37.8 cm / 23.5 cm

16.8 kg

AL3018-1502

AL3018-1502LW

75.6 cm

45.4 cm

44.4 cm

37.8 cm / 6.7 cm

13.5 kg

6.1 kg

AL3018-0405

AL3018-0405LW

75.6 cm

45.4 cm

24.8 cm

11.4 cm / 13.3 cm

9.8 kg

4.4 kg

AL3018-0809AC/HL

75.6 cm

45.4 cm

44.3 cm

20.8 cm / 23.5 cm

14.6 kg

AL3018-0402

AL3018-0402LW

75.6 cm

45.4 cm

18.1 cm

11.4 cm / 6.7 cm

9.3 kg

4.2 kg

AL3018-3603

75.6 cm

45.4 cm

101.3 cm

92.1 cm / 9.2 cm

19.9 kg

AL3018-0409AC/HL

75.6 cm

45.4 cm

34.9 cm

11.4 cm / 23.5 cm

12.6 kg

AL3018-0903

AL3018-0903LW

75.6 cm

45.4 cm

33 cm

23.8 cm / 9.2 cm

12.5 kg

5.7 kg

AL3018-2309

75.6 cm

45.4 cm

83.8 cm

60.3 cm / 23.5 cm

19.5 kg

AL3018-0803

AL3018-0803LW

75.6 cm

45.4 cm

30 cm

20.8 cm / 9.2 cm

11.7 kg

5.3 kg

AL3018-2305

75.6 cm

45.4 cm

73.7 cm

60.3 cm / 13.3 cm

18.4 kg

AL3018-0403

AL3018-0403LW

75.6 cm

45.4 cm

20.6 cm

11.4 cm / 9.2 cm

9.6 kg

4.4 kg

AL3018-2303

75.6 cm

45.4 cm

69.5 cm

60.3 cm / 9.2 cm

18.4 kg

AL3018-3605

75.6 cm

45.4 cm

105.4 cm

92.1 cm / 13.3 cm

20.1 kg

AL3018-0809W

AL3018-0809WLW

75.6 cm

45.4 cm

44.3 cm

44.3 cm / 23.5 cm

14.6 kg

6.6 kg

AL3018-0805

AL3018-0805LW

75.6 cm

45.4 cm

34.1 cm

20.8 cm / 13.3 cm

11.8 kg

5.3 kg

AL3018-1503

AL3018-1503LW

75.6 cm

45.4 cm

47 cm

37.8 cm / 9.2 cm

13.8 kg

6.3 kg

AL3018-3602

75.6 cm

45.4 cm

98.7 cm

92.1 cm / 6.7 cm

19.5 kg

AL3018-0909AC/HL

75.6 cm

45.4 cm

47.3 cm

23.8 cm / 23.5 cm

15.4 kg

AL3018-0905

AL3018-0905LW

75.6 cm

45.4 cm

37.1 cm

23.8 cm / 13.3 cm

12.6 kg

5.7 kg

AL3018-0802

AL3018-0802LW

75.6 cm

45.4 cm

27.4 cm

20.8 cm / 6.7 cm

11.3 kg

5.1 kg

AL3018-3609AC

75.6 cm

45.4 cm

115.6 cm

92.1 cm / 23.5 cm

22.8 kg

AL3022-0705

76.2 cm

56.3 cm

30.9 cm

17.8 cm / 13.2 cm

16.7 kg

AL3019-0709AC/HL

78.1 cm

49.8 cm

43.1 cm

19.4 cm / 23.7 cm

18.4 kg

AL3124-1204

79.8 cm

62 cm

39.8 cm

30.1 cm / 9.7 cm

13.6 kg

AL3124-1604

79.8 cm

62 cm

50 cm

40.3 cm / 9.7 cm

18 kg

AL3232-1111

82.3 cm

59.7 cm

30.5 cm / 29.2 cm

29.9 kg

AL3232-1412AC

82.4 cm

67.9 cm

36.8 cm / 31.1 cm

31 kg

AL3226-1404FT

82.6 cm

67.6 cm

46.6 cm

36 cm / 10.6 cm

23.8 kg

AL3226-1604

82.6 cm

67.6 cm

51.6 cm

40.9 cm / 10.6 cm

23.9 kg

AL3226-1413FT/AC/HL

82.6 cm

67.6 cm

68.8 cm

36 cm / 32.8 cm

27.6 kg

AL3226-1613AC/HL

82.6 cm

67.6 cm

73.7 cm

40.9 cm / 32.8 cm

28.3 kg

AL3232-1411

82.8 cm

65.3 cm

35.6 cm / 27.9 cm

32.2 kg

AL3232-1112

82.8 cm

60.2 cm

29 cm / 31.5 cm

34 kg

AL3428-0625AC/HL

86.4 cm

69.9 cm

78.5 cm

15.5 cm / 63 cm

25.9 kg

AL3428-1004

86.4 cm

69.9 cm

34.4 cm

24.9 cm / 9.5 cm

22 kg

AL3428-0614AC/HL

86.4 cm

69.9 cm

51.7 cm

15.5 cm / 36.4 cm

21.5 kg

AL3428-0604

86.4 cm

69.9 cm

25.1 cm

15.5 cm / 9.5 cm

17.6 kg

AL3428-1008AC

86.4 cm

69.9 cm

45.7 cm

24.9 cm / 20.8 cm

23 kg

AL3428-0608AC/HL

86.4 cm

69.9 cm

36.3 cm

15.5 cm / 20.8 cm

19.3 kg

AL3428-1025AC/HL

86.4 cm

69.9 cm

87.9 cm

24.9 cm / 63 cm

29.1 kg

AL3428-1014AC/HL

86.4 cm

69.9 cm

61.4 cm

24.9 cm / 36.4 cm

27.9 kg

AL3418-0505

86.8 cm

45.4 cm

26.7 cm

13.3 cm / 13.3 cm

12.2 kg

AL3424-1205

87 cm

61.4 cm

43.8 cm

30.5 cm / 13.3 cm

19.3 kg

AL3424-0805

87 cm

61.4 cm

33.7 cm

20.3 cm / 13.3 cm

16.7 kg

AL3424-0804

87 cm

61.4 cm

31.2 cm

20.3 cm / 10.9 cm

15.6 kg

AL3424-1204

87 cm

61.4 cm

41.4 cm

30.5 cm / 10.9 cm

18.1 kg

AL3434-1207

87.3 cm

50.2 cm

31.8 cm / 18.4 cm

25 kg

AL3434-2828AC

87.3 cm

142.8 cm

70.3 cm / 72.4 cm

32.7 kg

AL3434-2807

87.3 cm

88.7 cm

70.3 cm / 18.4 cm

30.3 kg

AL3434-1228AC

87.3 cm

104.1 cm

31.8 cm / 72.4 cm

39.5 kg

AL3535-1605

AL3535-1605LW

90.2 cm

53 cm

40 cm / 13 cm

30.8 kg

14 kg

AL3620-0512

90.9 cm

50.3 cm

43.7 cm

13.8 cm / 30.9 cm

17.6 kg

AL3627-0805

91.1 cm

68.6 cm

32.9 cm

19.9 cm / 13 cm

19.8 kg

AL3620-0505

91.1 cm

50.5 cm

25.7 cm

12.7 cm / 13 cm

11.6 kg

AL3620-0504

91.1 cm

50.5 cm

22.9 cm

12.7 cm / 10.2 cm

10.6 kg

AL3620-1704

AL3620-1704LW

91.1 cm

50.5 cm

53.6 cm

43.5 cm / 10.2 cm

18.9 kg

8.6 kg

AL3620-1710AC

91.1 cm

50.5 cm

69.3 cm

43.5 cm / 25.8 cm

22.9 kg

AL3620-0510AC/HL

91.1 cm

50.5 cm

38.5 cm

12.7 cm / 25.8 cm

14.7 kg

AL3627-1505

AL3627-1505LW

91.1 cm

68.6 cm

50.8 cm

37.8 cm / 13 cm

22.8 kg

10.4 kg

AL3620-1705

91.1 cm

50.5 cm

56.5 cm

43.5 cm / 13 cm

19.6 kg

AL3620-1712

91.2 cm

50.5 cm

74.4 cm

43.2 cm / 30.7 cm

21.6 kg

AL3633-0405AC/HL

92.2 cm

84.6 cm

25.8 cm

11.4 cm / 14.4 cm

19.5 kg

AL3825-2704

95.6 cm

62.6 cm

77.3 cm

67.2 cm / 10.2 cm

24.5 kg

AL3834-1628FT/AC

96.8 cm

86.7 cm

111.9 cm

40 cm / 71.9 cm

53.5 kg

AL3834-1617FT/AC/HL

96.8 cm

86.7 cm

83.8 cm

40 cm / 43.8 cm

39.2 kg

AL3834-1605FT

96.8 cm

86.7 cm

53.7 cm

40 cm / 13.7 cm

32.2 kg

AL4028-2105

101 cm

70.5 cm

64.9 cm

51.7 cm / 13.2 cm

36.3 kg

AL4028-1608

101 cm

70.5 cm

60.1 cm

39.3 cm / 20.8 cm

31.8 kg

AL4018-1003

101.6 cm

45.7 cm

33.5 cm

25.9 cm / 7.6 cm

16.3 kg

AL4119-0704

103.1 cm

48.5 cm

29.5 cm

18.1 cm / 11.4 cm

14.5 kg

AL4141-0808AC

103.6 cm

40.6 cm

20.3 cm / 20.3 cm

31.8 kg

AL4021-0804

104.1 cm

53 cm

27.9 cm

18.3 cm / 9.7 cm

16.8 kg

AL4141-0826AC

104.1 cm

86.4 cm

21 cm / 65.4 cm

51.7 kg

AL4141-0836AC

104.1 cm

111.1 cm

21 cm / 90.2 cm

55.8 kg

AL4021-0808AC/HL

104.1 cm

53 cm

37.9 cm

18.3 cm / 19.6 cm

18.6 kg

AL4141-0846AC

104.1 cm

136.5 cm

21 cm / 115.6 cm

59.9 kg

AL4421-0813

112.1 cm

53.7 cm

54 cm

20.7 cm / 33.3 cm

24.2 kg

AL4416-1026

112.8 cm

41.3 cm

93.8 cm

26.4 cm / 67.4 cm

31.5 kg

AL4532-0506

114.3 cm

81.3 cm

28.6 cm

13.3 cm / 15.2 cm

28.7 kg

AL4532-1606

114.3 cm

81.3 cm

54.6 cm

39.4 cm / 15.2 cm

37.2 kg

AL4532-0519

114.3 cm

81.3 cm

61.5 cm

13.3 cm / 48.3 cm

30.4 kg

AL4532-0515FT/AC/HL

114.3 cm

81.3 cm

51.1 cm

13.3 cm / 37.8 cm

36.8 kg

AL4532-1619

114.3 cm

81.3 cm

87.9 cm

39.6 cm / 48.3 cm

35.3 kg

AL4532-1615AC/HL

114.3 cm

81.3 cm

77.1 cm

39.4 cm / 37.8 cm

44.1 kg

AL4714-0503

119 cm

35.7 cm

21 cm

13.3 cm / 7.6 cm

12.5 kg

AL4714-0505

119 cm

35.7 cm

26.7 cm

13.3 cm / 13.3 cm

13.4 kg

AL4714-0405

119 cm

35.7 cm

23.5 cm

10.2 cm / 13.3 cm

12.3 kg

AL4714-0403

119 cm

35.7 cm

17.8 cm

10.2 cm / 7.6 cm

12 kg

AL4824-1604

123.5 cm

62.5 cm

50 cm

40.1 cm / 9.8 cm

26 kg

AL4824-1404

123.5 cm

62.5 cm

44.9 cm

35.1 cm / 9.8 cm

26.3 kg

AL4824-1408AC

123.5 cm

62.5 cm

55.7 cm

35.1 cm / 20.6 cm

29.3 kg

AL4824-1608

123.5 cm

62.5 cm

60.8 cm

40.1 cm / 20.6 cm

28.9 kg

AL4915-1105

124.5 cm

37.6 cm

41.3 cm

27.9 cm / 13.3 cm

18.1 kg

AL5040-1204

127.3 cm

101.6 cm

40.3 cm

30.8 cm / 9.5 cm

40.8 kg

AL5040-1212AC

127.3 cm

101.6 cm

60.9 cm

30.8 cm / 30.1 cm

46.7 kg

AL5023-0911

128.3 cm

59.2 cm

51.1 cm

23.1 cm / 27.9 cm

23.1 kg

AL5135-0718FT

129.6 cm

89 cm

64.1 cm

17.3 cm / 46.8 cm

46.9 kg

AL5149-1005

129.7 cm

124.7 cm

37.8 cm

25.6 cm / 12.2 cm

43.5 kg

AL5240-1138AC/HL

132.1 cm

101.6 cm

124.5 cm

27.9 cm / 96.5 cm

64.9 kg

AL5231-0807

133 cm

78.4 cm

36.8 cm

19.1 cm / 17.8 cm

25.7 kg

AL5231-1407

133 cm

78.4 cm

53.3 cm

35.6 cm / 17.8 cm

29.3 kg

AL5324-0805

135.9 cm

62.2 cm

33.8 cm

20.8 cm / 13 cm

25.5 kg

AL5424-2306FT/AC

136.8 cm

60.8 cm

73.3 cm

57.8 cm / 15.5 cm

47.3 kg

AL5430-3006AC

136.9 cm

75.7 cm

91.3 cm

75.9 cm / 15.4 cm

51.7 kg

AL5415-0504

136.9 cm

39.1 cm

24.1 cm

13.5 cm / 10.7 cm

14.3 kg

AL5430-0418AC

136.9 cm

76.5 cm

57.4 cm

11.7 cm / 46 cm

33.1 kg

AL5415-1026AC

137.2 cm

40.3 cm

92.4 cm

25.4 cm / 64.5 cm

40.6 kg

AL5545-0605AC

141 cm

115.6 cm

29 cm

16 cm / 13 cm

33.5 kg

AL5545-2323AC

141 cm

115.6 cm

115.2 cm

57.9 cm / 57.3 cm

81.2 kg

AL5545-0623AC/HL

141 cm

115.6 cm

77.8 cm

20.5 cm / 57.3 cm

71.2 kg

AL5545-2305AC

141 cm

115.6 cm

70.9 cm

57.9 cm / 13 cm

65.9 kg

AL5632-0404FT

142.4 cm

82.3 cm

21.1 cm

10.1 cm / 9.9 cm

25.2 kg

AL5616-0604W

143.3 cm

41.3 cm

25.6 cm

14.9 cm / 10.7 cm

19.2 kg

AL5616-0604

143.3 cm

41.3 cm

25.6 cm

14.9 cm / 10.7 cm

19.2 kg

AL5733-0906

143.8 cm

83.8 cm

33.5 cm

24.4 cm / 9.1 cm

34.7 kg

AL5733-0916FT/AC

144.4 cm

83.2 cm

63.7 cm

23 cm / 40.6 cm

56 kg

AL5757-0806

144.5 cm

36.3 cm

20.6 cm / 15.7 cm

46.7 kg

AL5834-0711

147.9 cm

87 cm

47.6 cm

19.7 cm / 27.9 cm

56.2 kg

AL5834-0111

147.9 cm

87 cm

32.4 cm

4.4 cm / 27.9 cm

49.4 kg

AL5834-1011

147.9 cm

87 cm

52.6 cm

24.6 cm / 27.9 cm

59.9 kg

AL5834-1028

148.1 cm

87.1 cm

104.1 cm

25.4 cm / 71.1 cm

48 kg

AL5834-1040

148.1 cm

87.1 cm

120.9 cm

25.4 cm / 101.6 cm

64.6 kg

AL5834-0740FT/AC

148.1 cm

87 cm

121 cm

19.4 cm / 101.6 cm

64 kg

AL5834-0128FT/AC/HL

148.1 cm

87 cm

75.1 cm

4.1 cm / 70.9 cm

57.2 kg

AL5834-0140FT/AC

148.1 cm

87 cm

105.7 cm

4.1 cm / 101.6 cm

60.8 kg

AL5834-0728FT/AC/HL

148.1 cm

87 cm

90.3 cm

19.4 cm / 70.9 cm

63 kg

AL5824-1119AC

148.9 cm

61.3 cm

76.7 cm

27.9 cm / 48.7 cm

34.7 kg

AL5910-0604

150 cm

25.2 cm

26.2 cm

15.7 cm / 10.5 cm

14.3 kg

AL5924-1018AC

150.5 cm

61.6 cm

71.9 cm

25.7 cm / 46.2 cm

33.6 kg

AL5924-1009

150.6 cm

61.7 cm

49 cm

25.7 cm / 23.4 cm

27.8 kg

AL6124-0805FT

155.3 cm

61.7 cm

34.6 cm

20.5 cm / 14.1 cm

27.3 kg

AL6638-0605

170.8 cm

95.9 cm

27.6 cm

15.2 cm / 12.7 cm

41.2 kg

BL6752-0805AC/HL

171.3 cm

131.7 cm

33.4 cm

20.4 cm / 13 cm

65.8 kg

AL6815-1032

172 cm

37.8 cm

106.7 cm

25.4 cm / 81.3 cm

35.4 kg

AL6815-1005

172.7 cm

38.7 cm

38.9 cm

25.7 cm / 13.2 cm

26.5 kg

AL6821-1105

173.7 cm

54.3 cm

41.8 cm

27.9 cm / 12.7 cm

29.6 kg

AL6924-1305

175.2 cm

61.7 cm

46.1 cm

32.3 cm / 13.8 cm

31.3 kg

AL6912-1003

176.2 cm

30.5 cm

35.8 cm

26.6 cm / 9.1 cm

19.1 kg

AL7007-0403AC

178.4 cm

17.8 cm

10.2 cm / 7.6 cm

13.6 kg

AL7208-0403

182.9 cm

20.3 cm

21.3 cm

10.2 cm / 7.6 cm

13.8 kg

AL7430-0418

187.4 cm

75.6 cm

57.5 cm

10.2 cm / 45.7 cm

50.8 kg

AL7819-0808AC

200.3 cm

49.4 cm

41.4 cm

21 cm / 20.4 cm

28 kg

AL7819-0805

200.3 cm

49.4 cm

33.7 cm

21 cm / 12.8 cm

27.6 kg

BL8024-3009AC

204.3 cm

62.1 cm

99.7 cm

76.5 cm / 23.2 cm

72.3 kg

BL8240-1623FT/AC

207.6 cm

101.6 cm

98.7 cm

40.9 cm / 57.8 cm

104 kg

BL8232-0705AC

207.9 cm

81.1 cm

31.4 cm

18.4 cm / 13 cm

55.5 kg

BL8232-0905AC

207.9 cm

81.1 cm

35.9 cm

22.9 cm / 13 cm

58.1 kg

BL8537-2906AC

216.5 cm

95.8 cm

89.5 cm

74.1 cm / 15.3 cm

86.2 kg

BL8653-5010

218.4 cm

134.6 cm

152.4 cm

127 cm / 25.4 cm

130.4 kg

BL9053-1035AC

228.6 cm

134.6 cm

115.6 cm

26 cm / 89.5 cm

126.1 kg

BL9024-1113FT/AC

231.1 cm

61.4 cm

63.3 cm

29.5 cm / 33.9 cm

66.8 kg

BL9836-1105AC

248.4 cm

91.2 cm

40.9 cm

27.9 cm / 13 cm

86.2 kg

BL9836-3705AC

248.4 cm

91.2 cm

106.9 cm

94 cm / 13 cm

109.8 kg

BL11433-0527AC

289.6 cm

83.8 cm

82.9 cm

13.7 cm / 69.2 cm

95.3 kg

BL13022-0813FT

328.9 cm

54.9 cm

49.5 cm

17.8 cm / 31.8 cm

61.9 kg

AL13115-0805FT

332.7 cm

38.1 cm

33.7 cm

21 cm / 12.7 cm

44 kg

BL15135-1321FT

383.8 cm

86.1 cm

88.4 cm

53.3 cm / 33.8 cm

134.7 kg

Compare

SINGLE LID CASE SIZES

Single Lid cases are available in several sizes and are completely customizable.
